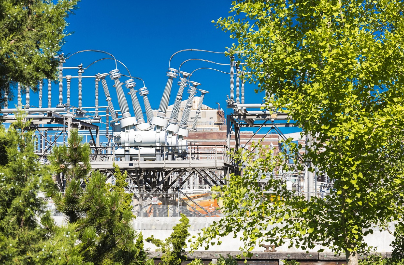

Oil-immersed transformers are critical components in modern electrical distribution networks. They step down high transmission voltages to safe levels for industrial, commercial, and residential use. At the heart of these transformers lies insulating oil, a multifunctional medium that serves both as an insulator and a coolant.
Maintaining the quality of this oil is essential to ensure transformer reliability, safety, and longevity. Contaminated or degraded oil can lead to insulation failure, overheating, or even catastrophic transformer breakdowns. This comprehensive guide explores the importance of testing insulating oil, the key testing methods, procedures, and best practices for preventive maintenance.
Insulating oil is a high-quality dielectric fluid used in oil-immersed transformers to provide electrical insulation between internal components and to dissipate heat generated during operation. Without proper insulation, electrical discharges can occur, damaging the transformer and reducing its lifespan.
Mineral Oil: The most common type, derived from petroleum refining, cost-effective, and widely used in conventional transformers.
Synthetic Ester Oil: Offers higher fire safety, biodegradability, and better thermal stability than mineral oil.
Natural Ester Oil: Plant-based and eco-friendly, increasingly used in environmentally sensitive areas.
Dielectric Strength: Ability to withstand electrical stress without breakdown.
Viscosity: Determines how well the oil circulates and transfers heat.
Moisture Content: Water reduces insulation efficiency and accelerates degradation.
Thermal Stability: Ensures oil does not decompose under high temperatures.
Transformers are long-term investments, Regular oil testing ensures:
Early Detection of Faults: Degraded oil indicates issues such as overheating, partial discharge, or arcing before they escalate.
Preventing Downtime: Scheduled maintenance based on oil condition prevents unexpected outages.
Compliance with Standards: Adheres to IEC, IEEE, and ASTM guidelines for safe operation.
Extended Service Life: High-quality oil maintains insulation performance, reducing stress on transformer components.
Regular monitoring of insulating oil is a cornerstone of preventive maintenance strategies, particularly for high-voltage and critical applications.
This test measures the oil’s ability to resist electrical stress. A higher breakdown voltage indicates that the oil is effective as an insulator.
Procedure: Apply gradually increasing voltage to a sample until breakdown occurs.
Typical Thresholds: For new mineral oil, BDV should be above 30 kV.
Water reduces dielectric strength and accelerates insulation aging. Moisture is commonly measured using Karl Fischer titration or relative saturation methods.
DGA identifies fault gases dissolved in transformer oil. Each type of gas indicates specific issues:
Hydrogen (H₂): Partial discharge
Methane (CH₄) & Ethane (C₂H₆): Thermal overheating
Acetylene (C₂H₂): Arcing
Carbon Monoxide (CO): Paper insulation degradation
Measures oil oxidation level. High acidity indicates advanced degradation, which can corrode transformer parts.
Checks the oil’s surface tension. Low IFT values indicate contamination by polar compounds, suggesting oxidation or moisture ingress.
Simple yet effective: oil darkening, cloudiness, or sludge formation signals contamination or aging.
Assesses the oil’s flammability risk. Critical for safety in indoor and high-temperature installations.
Correct sampling is crucial to obtain representative results:
Use clean, dry containers
Draw samples from the transformer’s main tank, conservator, or drain valve
Avoid introducing moisture or debris during collection
Laboratory Testing: Provides precise, detailed analysis of dielectric strength, DGA, and chemical properties.
On-Site Testing: Portable devices for quick checks, useful for routine monitoring or emergency inspections.
Compare measured values against standards (IEC 60296, ASTM D877/D1816).
Identify trends over time rather than isolated readings. A gradual decline in dielectric strength often signals early degradation.
Critical Transformers: Every 6–12 months
Medium Load Transformers: Every 1–2 years
Older Transformers (>20 years): More frequent checks to detect aging effects
Measure temperature, moisture, and dissolved gases in real time
Provide early warning before faults occur
Detects hotspots and uneven cooling
Can be combined with oil analysis for a complete assessment
Using historical oil test data to forecast transformer performance
Enables proactive maintenance scheduling, reducing downtime and costs
Oil Filtration: Removes moisture, sludge, and fine particulates
Oil Regeneration or Replacement: Restores dielectric and cooling properties
Load Adjustments: Reducing transformer stress based on oil condition
Scheduled Maintenance: Plan maintenance around oil analysis results to prevent failures
Always wear PPE and handle oil safely
Properly dispose of or recycle used transformer oil
Consider biodegradable or low-flammability oils for environmentally sensitive areas
Avoid leaks and ensure containment systems are in place
Maintaining insulating oil quality is fundamental to the reliability, efficiency, and longevity of oil-immersed transformers. Through a combination of laboratory testing, on-site checks, and advanced monitoring techniques, utilities and industrial operators can prevent costly failures, reduce downtime, and extend transformer service life.
By implementing a systematic oil testing and preventive maintenance strategy, transformers remain a dependable backbone of electrical distribution systems, supporting modern infrastructure and sustainable energy goals.
Next Steps for Transformer Operators:
Establish a regular oil testing schedule
Invest in portable testing equipment for on-site checks
Analyze historical oil data to predict potential faults
Consider advanced IoT-based monitoring for real-time insights
