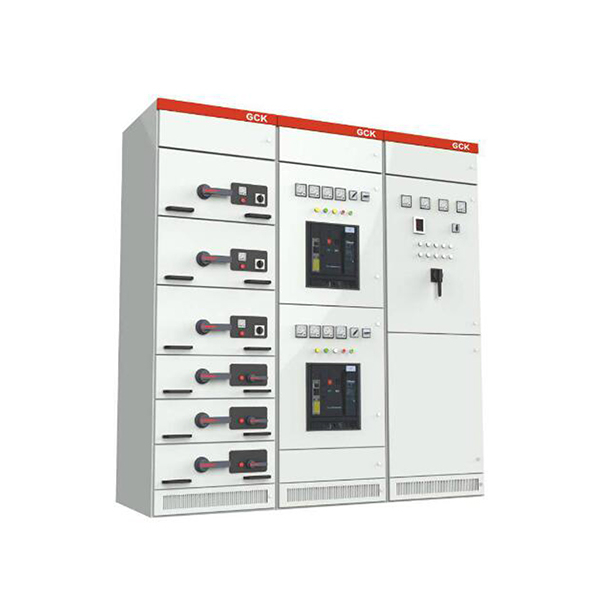

GCK Low Voltage Withdrawable Switchgear

Standards Compliant

GB7251.1-2005《Low Voltage Complete Switchgear》

IEC60439.1-1992《Low Voltage Complete Switchgear And Control Equipment》

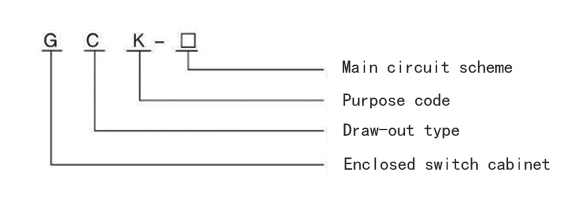

Model meaning

Normal usage environment

• The altitude does not exceed 2000m;

• The ambient air temperature is not higher than +40℃, and the average temperature within 24h is not higher than +35℃, and the surrounding air temperature is not lower than -50℃;

• Atmospheric conditions: The air is clean, the relative humidity does not exceed 50% when the temperature is +40°C, and higher relative humidity is allowed when the temperature is lower, for example: +20°C is 90%;

• There is no place with fire, explosion hazard, serious pollution, chemical corrosion and severe vibration;

• Tilt not more than 5° to the vertical;

• This product is suitable for transportation and storage at the following temperatures: -25°C ~ +55°C, within a short period of time (not more than 24h) not exceeding +70°C;

• If the above conditions of use cannot be met, the user should ask the manufacturer when placing an order and negotiate a settlement.

Technical Parameter
