What Are Dry Type Transformers?Understanding the Safe, Reliable, and Efficient Power Solution

In modern electrical systems, transformers play a vital role in stepping up or stepping down voltage to ensure the safe and efficient distribution of electricity. Among various types, dry type transformers are widely used in commercial, industrial, and even residential settings, thanks to their safety, durability, and low maintenance requirements. But what exactly is a dry type transformer, and how does it differ from its oil-filled counterpart?

This article will give you a professional overview of dry type transformers—how they work, where they're used, and why they're often the preferred choice in demanding environments.

What Is a Dry Type Transformer?

A dry type transformer is a type of electrical transformer that does not use any liquid or oil for insulation or cooling. Instead, the windings and core are cooled and insulated using air or solid insulating materials, such as epoxy resin.

Dry type transformers fall into two major categories:

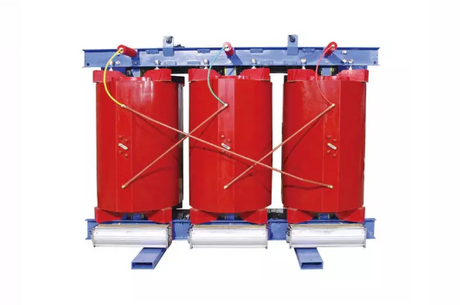

Cast Resin Transformers (CRT): Windings are completely encased in epoxy resin, making them highly resistant to moisture and contaminants.

Vacuum Pressure Impregnated (VPI) Transformers: Windings are coated with varnish and cured in a vacuum pressure chamber, offering moderate protection against environmental factors.

These transformers are known for being non-flammable, eco-friendly, and low-risk, making them ideal for indoor installations and locations with fire safety concerns.

How Does a Dry Type Transformer Work?

Like any transformer, a dry type transformer operates on the principle of electromagnetic induction. It consists of a primary coil and a secondary coil wound around a magnetic core. When alternating current flows through the primary winding, it creates a magnetic field that induces a voltage in the secondary winding.

What sets dry type transformers apart is how they manage heat and insulation:

Air-cooled: The natural airflow around the coils and core dissipates the heat. In high-power applications, fans may be added to enhance cooling.

Solid insulation: Instead of oil, the windings are insulated with resin or varnish, eliminating the risk of leaks or combustion.

Advantages of Dry Type Transformers

1. Enhanced Safety

Dry type transformers are non-flammable, which significantly reduces the risk of fire or explosion. This makes them suitable for hospitals, schools, high-rise buildings, underground substations, and offshore platforms.

2. Low Maintenance

With no oil to test, change, or leak, dry type transformers are considered low-maintenance. Periodic inspections and cleaning are generally sufficient.

3. Environmentally Friendly

They contain no harmful liquids, which means zero risk of groundwater contamination or hazardous waste disposal issues.

4. Moisture and Pollution Resistance

Cast resin transformers can operate in humid or dusty environments without degradation. That’s why they’re often used in coastal areas, tunnels, and mining operations.

5. Space-Saving and Easy Installation

Dry type units can be installed indoors, in smaller enclosures, or close to loads—saving space and reducing cable costs.

Common Applications of Dry Type Transformers

Dry type transformers are used in a wide variety of applications, including:

Commercial buildings and data centers

Industrial plants and factories

Wind and solar power stations

Subways and airports

Marine and offshore platforms

Hospitals, stadiums, and public infrastructure

Are There Any Limitations?

While dry type transformers are extremely reliable, they do have some limitations:

Cooling capacity is lower than that of oil-filled transformers, which limits their use in very high-voltage or high-capacity applications.

Initial cost is typically higher, though the long-term operational savings often outweigh the upfront investment.

Conclusion

Dry type transformers offer a safe, reliable, and sustainable solution for modern electrical infrastructure. With no oil, minimal maintenance, and high fire safety, they are particularly well-suited for urban, indoor, and environmentally sensitive installations.

As power systems evolve to meet stricter safety and environmental standards, the demand for dry type transformers is expected to grow. Whether you're designing a new facility or upgrading an old one, considering a dry type transformer could be a smart, future-proof choice.
