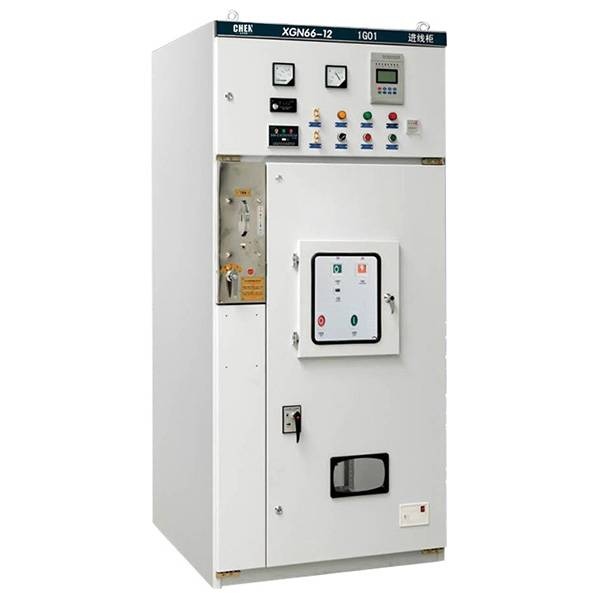

XGN66-12(Z)type fixed closed switchgear

Product description

XGN66-12(Z) fixed enclosed switchgear (hereinafter referred to as switchgear) is a complete set of new generation high-voltage electrical appliances of our company, It meets the requirements of national standard GB3906 《3-35kv AC metal enclosed switchgear》,DLT404 《indoor AC high voltage switchgear ordering technical conditions》 of Ministry of power, and also meets the requirements of international standard iec60298《AC metal enclosed switchgear and control equipment above 1kV and below 52kv》.

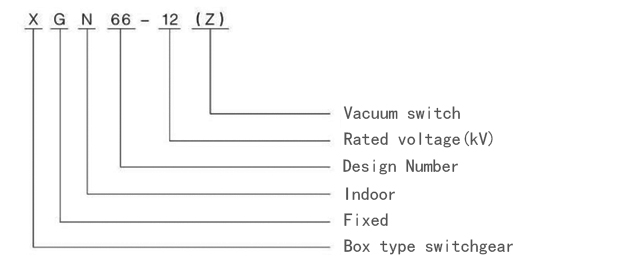

Model meaning

Normal usage environment

• Altitude: ≤1000m;

• Ambient temperature: -25°C~ +40°C,the average temperature within 24 hours does not exceed +35°C;

• The horizontal inclination is not greater than 3°；

• The earthquake intensity does not exceed 8 degrees；

• No places with severe vibration, impact or explosion hazard.

Structural features

• The cabinet body is welded with high-quality angle steel;
•The circuit breaker room is located in the middle (lower) part of the cabinet, which is convenient for installation, debugging and maintenance. Standard VS1 circuit breaker is equipped with pressure release channel to ensure personal safety;
•Adopt advanced and reliable rotary isolating switch, which can safely enter the circuit breaker room for maintenance when the main bus is live;
•The protection level of the whole cabinet is IP2X;
• Equipped with a reliable and fully functional compulsory mechanical locking device, which can easily and effectively meet the “five prevention” requirements;
• Have a reliable grounding system;
• The door is equipped with an observation window, which can clearly observe the working status of the components in the cabinet;
• The operating mechanism is locked using the same JSXGN locking mechanism used in the XGN2-12 cabinet, which is simple, reliable, convenient and practical;
• The incoming and outgoing cables are lower than the front of the cabinet, which is convenient for users to connect.

Product Paramenters
