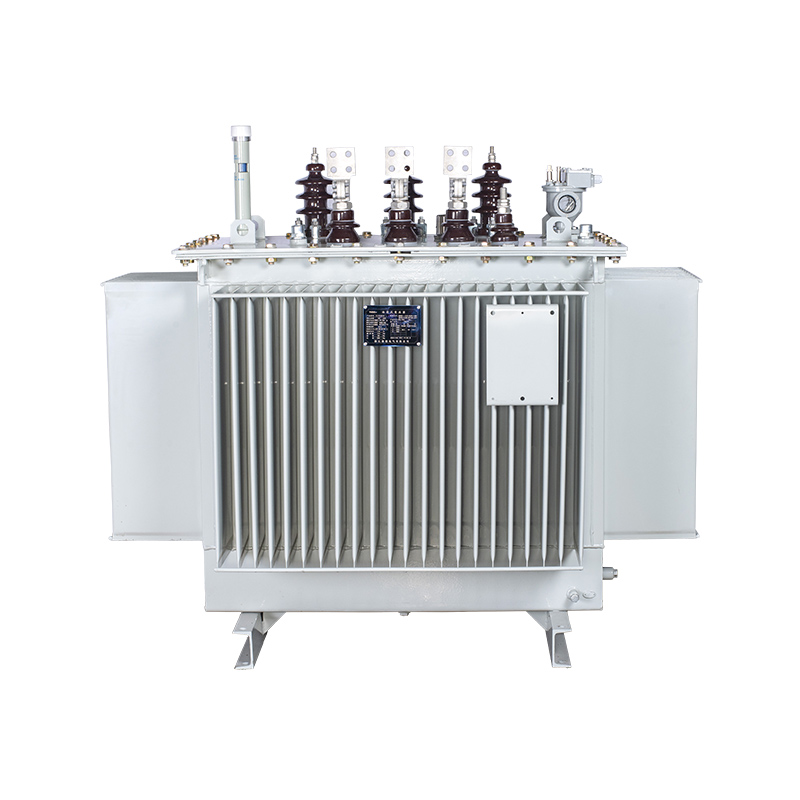

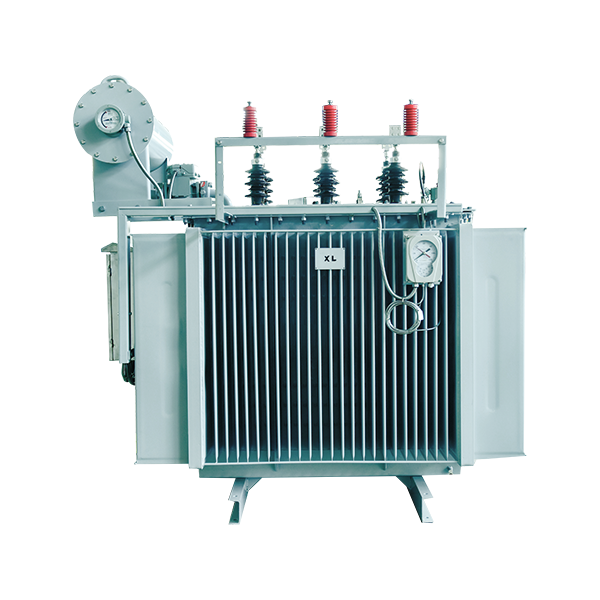

S13 Series 10kv Oil-Immersed Distribution Power Transformers


Availability:

Inquire

High efficiency, low loss, low noise; Good internal heat dissipation；strong short circuit resistance; Low empty and load losses; Reliable operation, long life, maintenance-free.

Product Description

Oil Cooled Transformer Features:

The S13 series fully sealed oil-immersed power transformer developed and produced by the company has the advantages of low loss, low noise and high efficiency, which can achieve good energy-saving effects and reduce pollution.

Compared with ordinary oil-immersed transformers, fully sealed transformers eliminate the oil conservator. The change of oil volume is automatically adjusted and compensated by the elasticity of the corrugated sheet of the corrugated oil tank. The transformer is isolated from the air to prevent and slow down the deterioration of oil and insulation aging so as to enhance operational reliability, and maintain normal operation without maintenance.

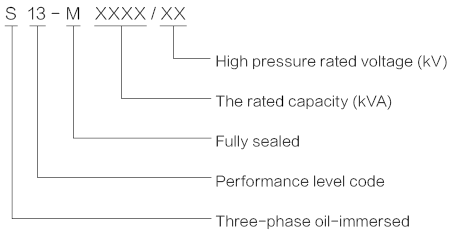

Model meaning:

S13-M

Product Standards：

GB1094.1-2-2013 GB/T 6451-2015
Rated high voltage: 10 (10.5, 11, 6, 6.3, 6.6) kV
Rated low voltage: 0.4kV
Tap range: non-excitation voltage regulation (±5%, ±2×2.5%)
On-load voltage regulation: (±4×2.5%)
Connection group: Dyn11 or Yyn0
Insulation level: LI75AC35/AC5

Technical parameters

Rated capacity(kVA)	Voltage combination					Connection group label	Loss (kW)			No-load current (%)	Short circuit resistance (%)	Weight(kg)					External dimensions (L)x(W)x(H)		Gauge (mm)
	High tension (kV)		Tapoff （%）	Low pressure (kV)			No-load loss (W)		Load loss			Body weight	Oil weight		Total weight		Fully sealed	Not fully sealed
30	6 6.3 10 10.5 11	±2X2.5			0.4	Dyn11 Yzn11 Yyn0	0.08	0.63/0.60		2.3	4.0	130		700		300	710×710×930	930×580×1000	400/400
50							0.10	0.91/0.87		2.0		200		800		400	730×710×1010	950×600×1080	400/400
63							0.11	1.09/1.04		1.9		240		900		450	750×730×1040	970×630×1100	400/400
80							0.13	1.31/1.25		1.9		280		100		520	760×740×1060	980×640×1120	400/400
100							0.15	1.58/1.50		1.8		310		100		550	770×750×1130	1000×650×1200	450/400
125							0.17	1.89/1.80		1.7		370		120		640	800×770×1150	030×670×1220	550/550
160							0.20	2.31/2.20		1.6		440		130		740	820×780×1240	1050×680×1310	550/550
200							0.24	2.73/2.60		1.5		500		140		810	840×810×1260	070×700×1330	550/550
250							0.29	3.20/3.05		1.4		610		160		970	870×850×1300	1100×750×1370	550/550
315							0.34	3.83/365		1.4		750		200		1200	1180×820×1390	1400×720×1460	550/550
400							0.41	4.5214.3		1.3		900		240		1420	1260×840×1450	1480×760×1520	550/550
500							0.48	5.41/5.15		1.2		1050		250		1620	1300×860×1500	1560×800×1600	660/660
630						Dyn11 Yyn0	0.57	6.20		1.1	4.5	1240		280		1860	1370×890×1470	1630×890×1570	660/660
800							0.70	7.50		1.0		1510		340		2250	1430×930×1580	690×930×1680	820/820
1000							0.83	10.30		1.0		1560		360		2410	1600×1100×1610	1860×1100×1720	820/820
1250							0.97	12.00		0.9		1.91		420		2930	1690×1140×1750	1950×1140×1860	820/820
1600							1.17	14.50		0.8		2320		520		3630	1820×1650×2060	1820×1650×2060	820/820
2000							1.26	17.80		0.6		2820		660		4550	1920×1750×2160	1920×1750×2160	820/820
2500							1.49	20.70		0.5		3550		760		5470	2020×1910×2260	2020×1910×2260	1070/1070

Note 1: The load loss value above the diagonal line in the table applies to the Dyn11 or Yzn11 connection group, and the load loss value below the diagonal line applies to the Yyn0 connection group.
