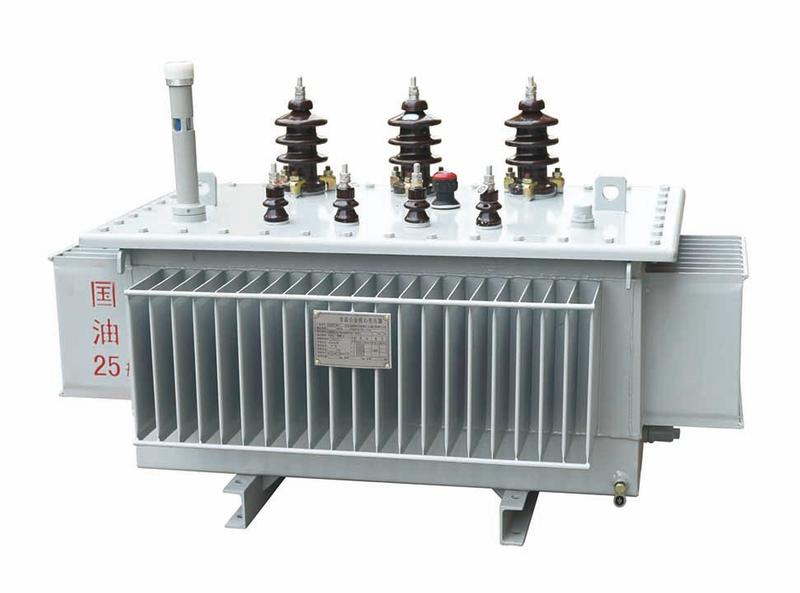

SBH15 10KV Immersed Amorphous Alloy Core Distribution Transformers


Availability:

Inquire

Energy Saving, No-load Loss Is 75% Less Than S9 Series; Low Loss, Low Noise, Low Temperature Rise, Steady Work; Advanced Structure, High Anti Short Circuit;High Overload Ability, Safe And Reliable, High Resistant To Corrosion, Free Maintenance.

Product Description

Product Features:

Energy Saving, No-load Loss Is 75% Less Than S9 Series;

Low Loss, Low Noise, Low Temperature Rise, Steady Work;

Advanced Structure, High Anti Short Circuit;High Overload Ability, Safe And Reliable, High Resistant To Corrosion, Free Maintenance.

Product standards

GB1094.1 ~ 2-2013 GB/T 25446-2010

High pressure rating: 10 (10.5, 11, 6, 6.3, 6.6) kV

Low pressure rating: 0.4 kV

Tapping range: non-field excitation changer (plus or minus 5%, plus or minus 2 x2.5% )

Link category: Dyn11 or Yyno

Insulation level: LI75AC35 / AC5

Technical parameters

Rated capacity(kVA)	Voltage Combinationand Tap range			Vector Group Symbol	No-load loss (W)	Load loss	No-load current (%)	Short circuit impedance (%) 4.0
Rated capacity(kVA)	High pressure	High pressure tap range (%)	Low ressure (kV)	Vector Group Symbol	No-load loss (W)	Load loss	No-load current (%)	Short circuit impedance (%) 4.0
30	6 6.3 10 10.5 11	±2X2.5±5	0.4	Dyn11 YynO	33	630/660	1.5	4.0
50					43	910V870	1.2
63					50	1090/1040	1.1
80					60	1310/1250	1.0
100					75	1580/1500	0.90
125					85	1890/1800	0.80
160					100	2310/2200	0.60
200					120	2730/2600	0.60
250					140	3200/3050	0.60
315					170	3830/3650	0.50
400					200	4520/4300	0.50
500					200	5410/5150	0.60
630					320	6200	0.30	4.5
800					380	7500	0.30
1000					450	10300	0.30
1250					530	12000	0.20
1600					630	14500	0.20
2000					750	18300	0.20	5.0
2500					900	21200	0.20	5.0

Note: for the rated capacity of 500 kva and below transformer, load loss value of the diagonal lines in the table above apply to Dyn11 or Yzn11 link group, slash at the bottom of the load loss value applies to Yyno link group.
